VL 6.2mm Pitch Connectors

SCT6203 Series

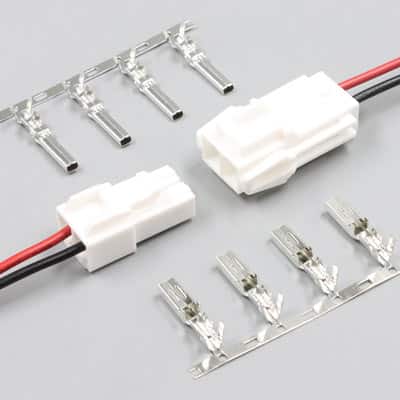

SCT6203 Series connectors are compatible with JST VL (HIGH CURRENT TYPE) 6.2mm series wire to wire connectors. Designed for high current, using highly conductive materials, making it possible to safely connect high current circuits.

Specification

SeriesSCT6203 Series
Contact Pitch6.2mm
No.of Contacts1 2 3 4 6 positions
Current20A (AWG #14 to #18)
CompatibleCross Jst VL Connector Series
Part No.SCT6203
Compatible:JST VL series connector
Pitch – Mating Interface6.2mm
Circuits1,2,3,4,6
Applicable wire:AWG#14-#18 (Max.OD:3.5mm)
Current Rating:20A
Voltage Rating:300V
Temperature Range:-25°C~+85°C
Contact Resistance:20m Omega Max
Insulation Resistance:1000M Omega Min
Withstanding Voltage:1000V AC/minute

JST VL 6.2mm Wire-to-Wire Connector

SCT6203 Series is Scondars Line of Reliable 6.2mm Wire-to-Wire Connectors Likened to the JST Brand

Scondar offers the SCT6203 Series, a replacement and cheaper alternative of JST VL 6.2mm wire-to-wire connector, designed for large current. It features a secondary retainer, which prevents from the insufficient insertion of contact and coming off contact, may use. Large current circuit can be connected certainly and safely.

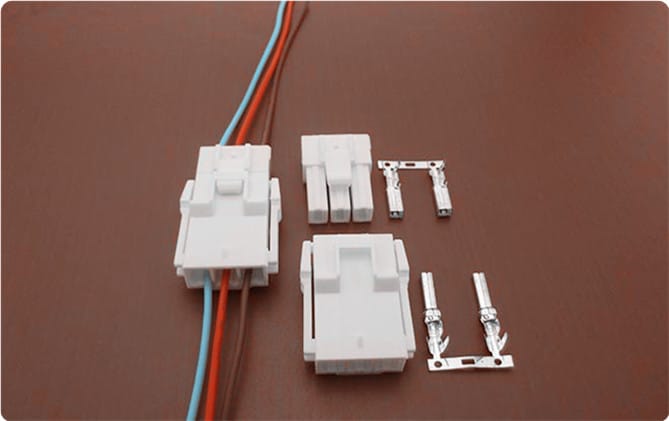

This connector comes in a complete package: from the male housing, female/receptacle housing, female terminal, and male terminal. All components manufactured with precision-fitting and durability ensuring accurate mating.

JST VL 6.2mm pitch connector supports up to a maximum 20A of current per circuit allowing quick swapping of wired terminals for disruption-free operations in consumer, automotive and industrial applications. This economy power connector is designed with 1,2,3,4, and 6 positions.

Features

Housing lances for contact retention

The contacts can be easily inserted while being securely locked into the housing since the contact retention lances are part of the housing rather than protruding from the contact. With this design, they cannot be damaged by handling.

Secondary retainer

A secondary retainer can be optionally available and is used to ensure that the contacts are seated in place and locked in the housing, preventing an accidental release. This is installed after the contacts are inserted, it locks and secures the contact.

Suited for circuits with high power requirements

Since these contacts have large cross-sectional areas and high contact pressure, they can accommodate circuits requiring high power.

Panel lock construction

Our unique space-saving panel lock is designed to prevent tangling with wires or breaking in cold or dry weather.

Application

  • Consumer
  • Air conditioner
  • Air purifier / dehumidifier
  • Copiers
  • Fitness Equipment
  • Microwave oven
  • Printers
  • Refrigerator
  • Washing Machine
  • Data/Computing
  • Copiers
  • Medical
  • Medical equipment

Material and Packaging of JST VL 6.2mm Pitch Wire-to-Wire Connector

Using a UV-Resistant Thermoplastic Material for Enhanced Connector Performance

The housing components are injection molded Nylon66,UL 94V-0. These are scientifically proven to resist UV-radiation than normal plastic, making sure the connectors are well-protected, reducing risk for early degradation and increased cycles/minute of the connector subjected to harsh environments.

Tape and Reel Packaging for SMT Components

Scondar uses a state-of-the-art tape and reel equipment to package a variety of components.

The tape and reel packaging strip has accurately sized cavities for the terminal height, width and depth, secured tightly, maintaining consistent position during transportation.

You can expect that your wire-to-wire connector package is undisturbed during the trip and has maintained its vitality even during your production stages, which is why a lot of our customers has raved about our product for both cheaply-priced and, at the same time, resembles the JST VL 6.2mm pitch wire-to-wire product in performance and quality.

The complete package will include the following:

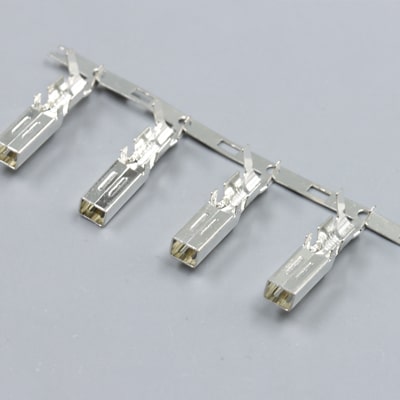

Female terminal: 10,000 pcs/reel, brass material and tin-plated finish

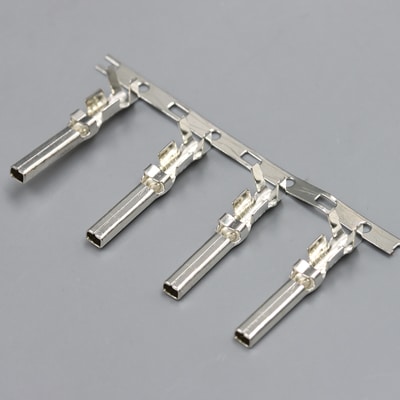

Male terminal: 10,000 pcs/reel, brass material and tin-plated finish
Female Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
Male Housing (Nylon 66, UL94V-0 500): 1000pcs/bag
