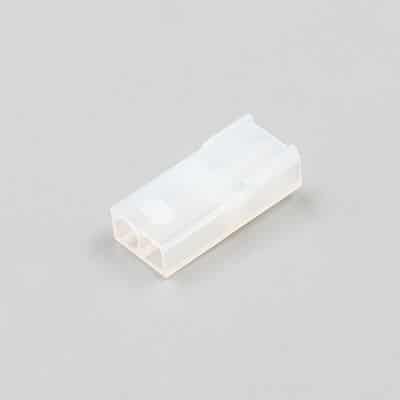

SCT4501 Series

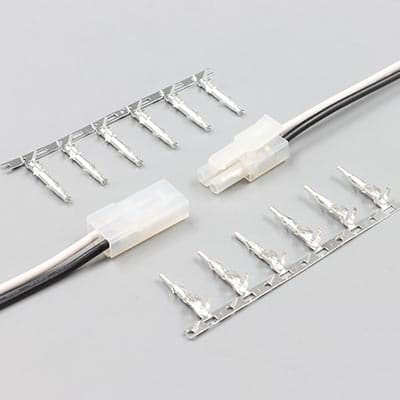

SCT4501 series are replaced of Minebea CL014 4.5mm pitch wire to wire connectors.
Specification
| Series | SCT4501 Series |
|---|---|
| Contact Pitch | 4.5mm |
| No.of Contacts | 2 to 4 positions |
| Current | 10A (AWG #18 to #26) |
| Compatible | Cross Minebea CL014 Connector Series |
Previous
Next
Select Components
Specification
| Current Rating: | 10A |
| Voltage Rating: | 300V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1500V AC/minute |
