SCT3961 Series
SCT3961 Series are Replace of JST VH connector. 3.96mm pitch, it can be used with widely on signal, power supply and other consumer electronic product.
Specification
| Series | SCT3961 Series |
|---|---|
| Contact Pitch | 3.96mm |
| No.of Contacts | 2 to 12 positions |
| Current | 7A (AWG #18 to #22) |
| Compatible | Cross JST VH Connector Series |

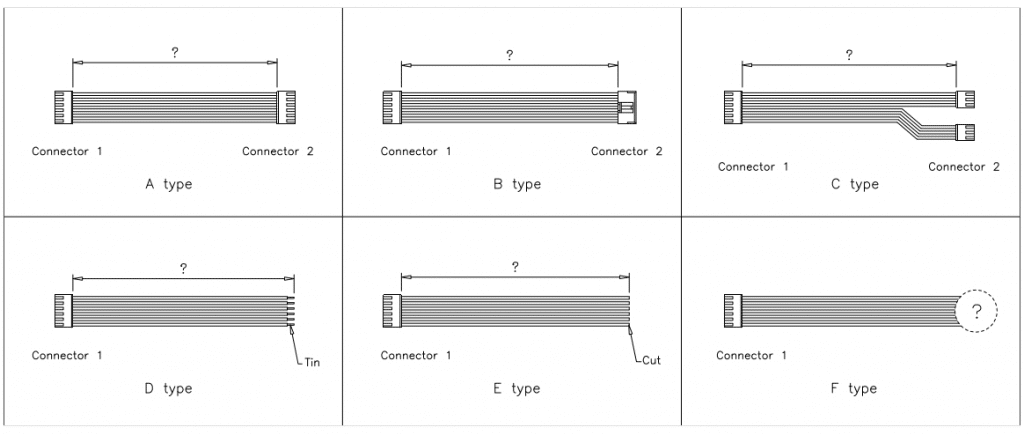

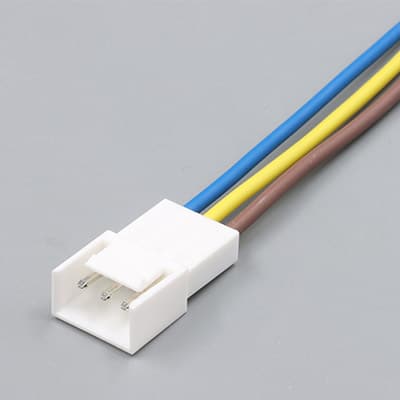

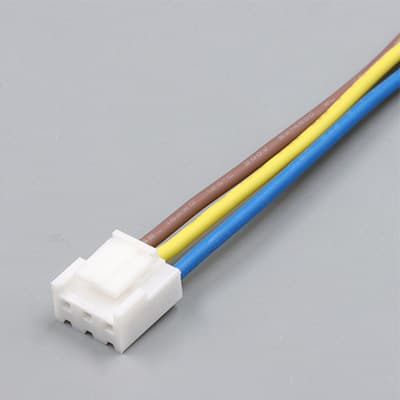

Cable Assemblies Refer
| Current Rating: | 7A |
| Voltage Rating: | 250V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1000V AC/minute |

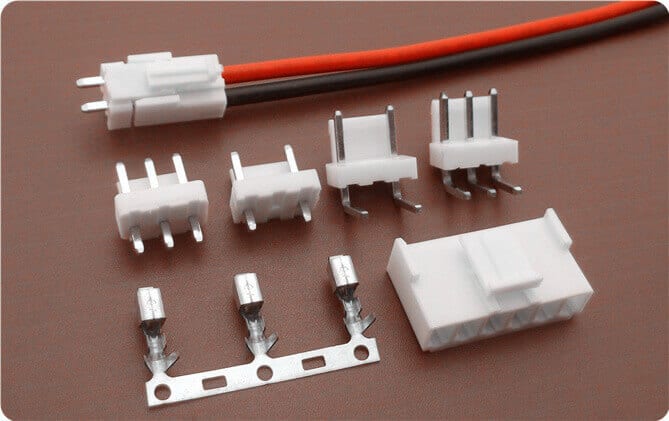

SCT3961 3.96mm wire-to-board connector, a reliable alternative to jst vh.
This is a high-performance connector series known for their reliability, versatility, and wide range of applications. Let’s explore the features, applications, and advantages of JST VH connectors.
Features fo JST VH Connector:
1.High Current Capacity: JST VH connectors are designed to handle high-current applications, boasting exceptional current-carrying capabilities. This makes them ideal for power transmission and distribution systems.
2. Multi-Pin Design: JST 3.96mm connectors come in various pin counts, allowing for versatile connectivity options. Whether you need to connect a few wires or multiple connections, there’s a VH connector for the job.
3. Secure Locking Mechanism: These connectors feature a robust locking mechanism that ensures a secure and vibration-resistant connection. This minimizes the risk of accidental disconnection, even in demanding environments.
4. Diverse Applications: JST VH connectors find applications in a wide range of industries, including automotive, industrial automation, power distribution, and more. They are suitable for both signal and power connections.
Applications of JST VH:
1. Automotive Industry: These connectors are commonly used in the automotive industry for connecting various components, including sensors, lights, and control modules. Their reliability is crucial in this safety-critical environment.
2. Industrial Automation: In industrial settings, VH connectors play a vital role in connecting machinery, sensors, and control systems. Their high-current capability ensures efficient operation.
3. Power Distribution: VH connectors are employed in power distribution systems, such as those found in data centers and electrical panels, due to their capacity to handle substantial electrical loads.
4. Consumer Electronics: They are used in consumer electronics, providing reliable connections in devices like printers, scanners, and home appliances.
5. Renewable Energy: In the renewable energy sector, VH connectors are used in solar inverters and wind turbines, facilitating the efficient transfer of power from renewable sources.
Advantages of JST VH:
1. Reliability: JST VH connectors are known for their durability and long-lasting performance, even in challenging conditions.
2. Versatility: With various pin counts and configurations available, can accommodate a wide range of applications, from small electronic devices to large-scale industrial systems.
3. Secure Connections: The robust locking mechanism ensures that connections remain secure and stable, reducing the risk of interruptions or downtime.
4. High Current Handling: VH connectors excel in applications where high currents are involved, making them a dependable choice for power transmission.
In conclusion, JST VH connectors are a trusted solution for reliable and secure connections in a diverse range of industries. Their high current capacity, versatility, and robust design make them an excellent choice for various applications where connectivity is critical. Whether you’re in the automotive, industrial, or renewable energy sector, provide the connectivity solutions you can rely on.
