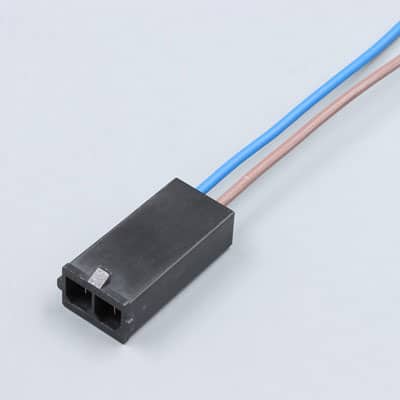

Sabre 7.5mm Pitch Connectors

The Molex Sabre Connectors family is designed to meet the rigorous demands of high-current and high-voltage applications, offering reliable electrical connections in environments subject to high vibration. With their robust features, these connectors are ideal for industries requiring durable, secure, and cost-effective wire-to-wire and wire-to-board solutions.

• Blade-Terminal Design with Four Points of Electrical Contact
  Unlike traditional circular-style terminals, the blade-terminal design of the Sabre Connectors offers four points of electrical contact. This configuration ensures a more reliable and stable electrical connection, which is crucial in high-performance systems that demand minimal signal loss or power drop.

• Female Terminals Compatible with .125” MEMA PC Tabs
  For applications where cost efficiency is important, the Sabre Connectors provide a one-piece wire-to-board solution that mates with .125” MEMA PC tabs. This compatibility reduces the need for additional components, simplifying assembly and helping to lower overall system costs.

• Positive Latch on Receptacle Housing
  The positive latch mechanism on the receptacle housing ensures a secure connection that prevents accidental disengagement. This feature is especially valuable in applications where vibration or physical disturbances could cause loose connections, guaranteeing a more stable and dependable connection during operation.

• Right-Angle and Vertical Header Configurations
  Sabre Connectors are available in both right-angle and vertical header configurations, offering flexibility to suit a variety of customer board designs. Whether space constraints or preferred layout configurations are a concern, the Sabre family provides versatile options to match your specific application needs.

• Reliable Electrical Connections: The four-point contact blade terminal design and positive latch system prevent accidental disengagement and ensure secure connections even in high-vibration environments.

• Versatility: With both right-angle and vertical header configurations, these connectors offer the flexibility to fit a wide range of design requirements and customer preferences.

• Cost-Effective Solution: By mating with standard MEMA PC tabs, the Sabre Connectors simplify assembly and reduce costs, offering a one-piece wire-to-board solution that eliminates the need for additional components.

• High Performance in Harsh Conditions: Designed for high-current and high-voltage applications, these connectors are built to perform under extreme conditions, providing longevity and reliability.

The Molex Sabre Connectors are perfectly suited for a variety of high-current, high-voltage, and vibration-sensitive applications, including:

• Automotive and Electric Vehicles (EVs)
  In electric vehicles, where high power transmission and durability are critical, the Sabre Connectors offer a reliable solution for both wire-to-wire and wire-to-board connections. Their ability to withstand high currents and vibration makes them ideal for battery systems and motor connections.

• Industrial Equipment
  Industrial machinery often operates in environments that subject components to constant vibration, shocks, and extreme currents. Molex Sabre Connectors are designed to perform under these harsh conditions, ensuring uninterrupted functionality and long service life.

• Power Supply Systems
  For power supply applications, where high-voltage connections are a necessity, the Sabre Connectors’ ability to handle up to 600V allows for safe, reliable power transmission in various industrial and commercial systems.
