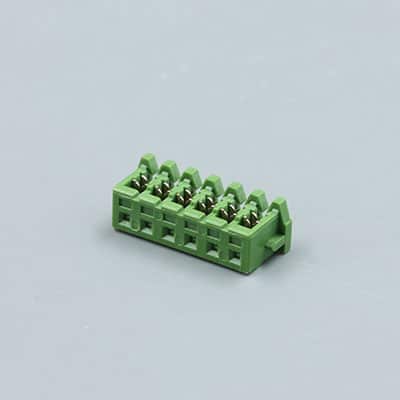

SCT2031 Series
Specification
| Series | SCT2031 Series |
|---|---|
| Contact Pitch | 2.0mm |
| No.of Contacts | 2 to 15 positions |
| Current | 3A |
| Compatible | Cross JST KR Connector Series |
Previous
Next
Select Components
| Item | Spec. |
|---|---|
| Current Rating: | 3A |
| Voltage Rating: | 125V |
| Temperature Range: | -25°C~+105°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | ≥1000M Omega Min |
| Withstanding Voltage: | 500V AC/minute |
