SCT1004 Series

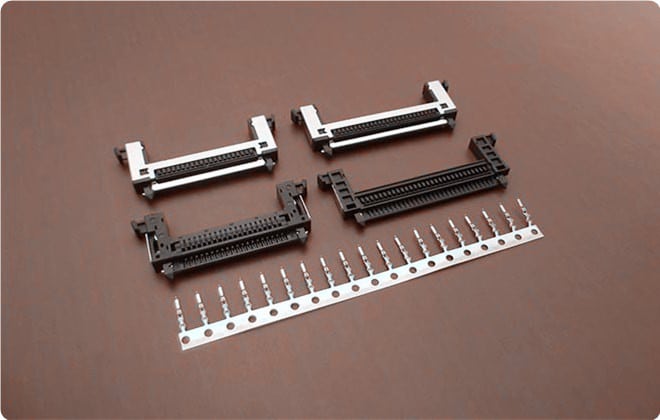

SCT1004 Series are replaced by JAE FI-E connector 1mm pitch, a field widely uses on LVDS fields. Mechanical lock available to prevent incomplete or inadequate mating.Low-profile design with 3.2mm height.
Specification
| Series | SCT1004 Series |
|---|---|
| Contact Pitch | 1.0mm |
| No.of Contacts | 31 41 51 positions |
| Current | 0.5A (AWG #30 to #32) |
| Compatible | Cross JAE FI-E Connector Series |
Select Components
Housing
Terminal
Cable Assemblies Refer
| Part No. | SCT1004 |
| Compatible: | JAE FI-E series connector |
| Pitch – Mating Interface | 1.0mm |
| Circuits | 31,41,51 |
| Applicable wire: | AWG#30-#32 (Max.OD:0.6mm) |
| Current Rating: | 0.5A |
| Voltage Rating: | 200V |
| Temperature Range: | -40°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 100M Omega Min |
| Withstanding Voltage: | 500V AC/minute |
