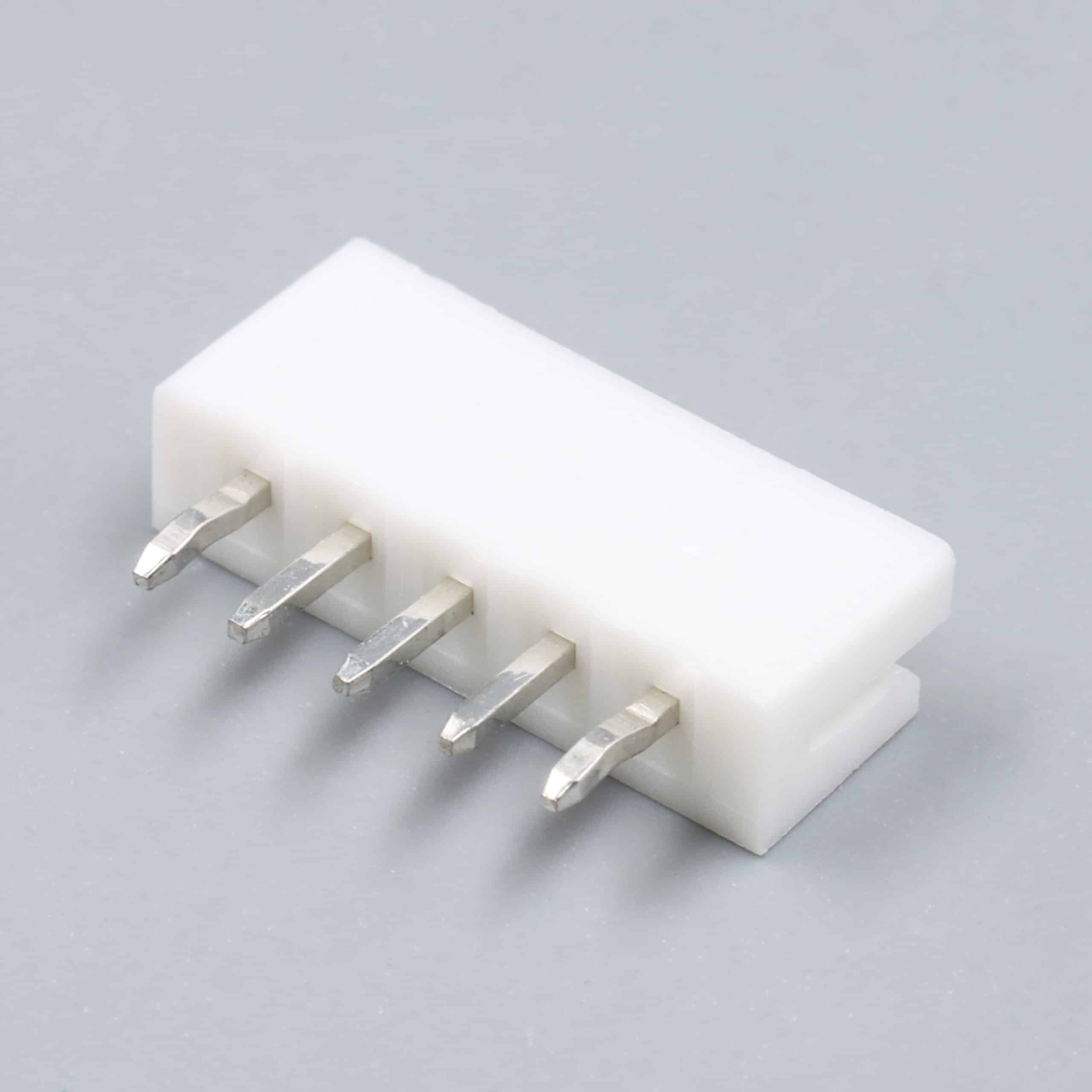

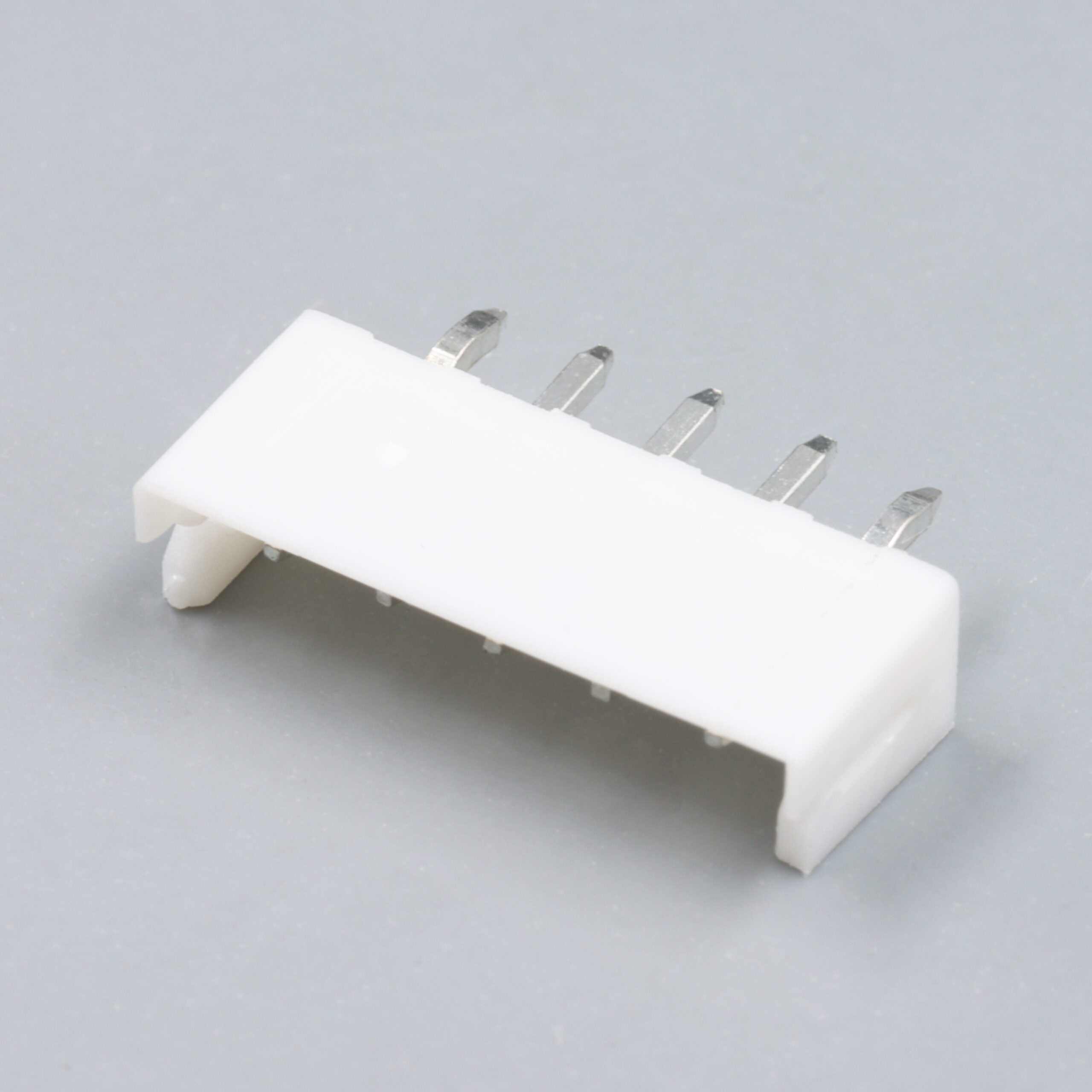

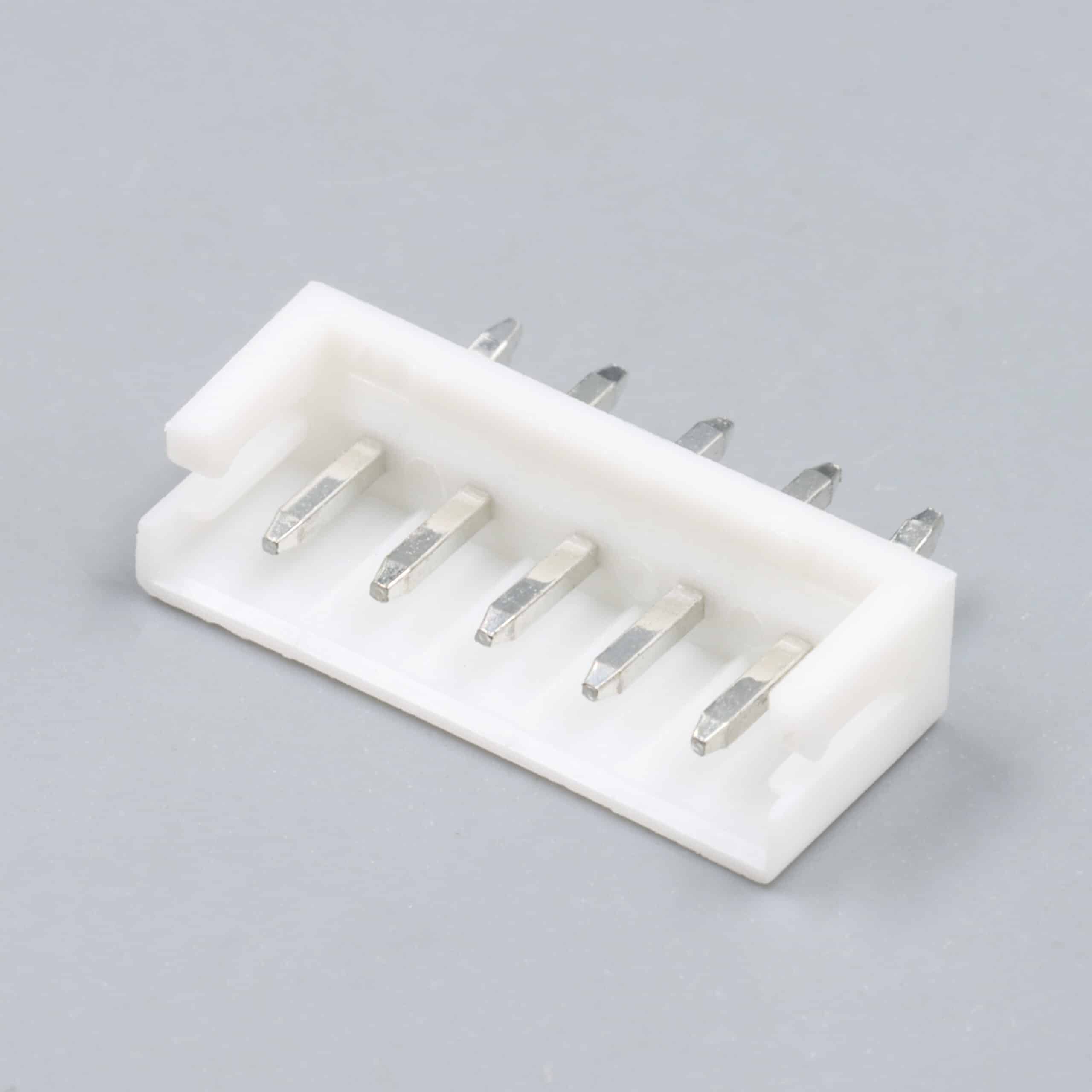

SCT2511WV
Specification
| Part Name | Vertical Header |
| Pitch | 2.5mm |
| Series | SCT2511 |
| Compatible | BxxB-EH Series |
Part No. Cross Reference
| SCONDAR P/N | JST P/N | Circuits |
|---|---|---|
| SCT2511WV-02B0WT106 | B2B-EH | 2 |
| SCT2511WV-03B0WT106 | B3B-EH | 3 |
| SCT2511WV-04B0WT106 | B4B-EH | 4 |
| SCT2511WV-05B0WT106 | B5B-EH | 5 |
| SCT2511WV-06B0WT106 | B6B-EH | 6 |
| SCT2511WV-07B0WT106 | B7B-EH | 7 |
| SCT2511WV-08B0WT106 | B8B-EH | 8 |
| SCT2511WV-09B0WT106 | B9B-EH | 9 |
| SCT2511WV-10B0WT106 | B10B-EH | 10 |
| SCT2511WV-11B0WT106 | B11B-EH | 11 |
| SCT2511WV-12B0WT106 | B12B-EH | 12 |
| SCT2511WV-13B0WT106 | B13B-EH | 13 |
| SCT2511WV-14B0WT106 | B14B-EH | 14 |
| SCT2511WV-15B0WT106 | B15B-EH | 15 |
