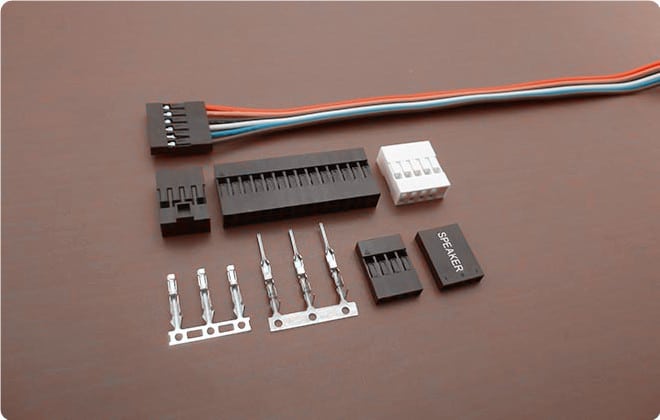

SCT2543 Series
SCT2543 Series are replaced of Dupont 2.54mm series wire to wire or to board connectors. Versatile for breadboards, Arduino and industrial wiring.
Specification
| Series | SCT2543 Series |
|---|---|
| Contact Pitch | 2.54mm |
| No.of Contacts | 2 to 20, 2*2 to 2*20 positions |
| Current | 3A (AWG #22 to #28) |
| Compatible | Cross Dupont 2.54mm Connector Series |
Cable Assemblies Refer
| Current Rating: | 3A |
| Voltage Rating: | 250V |
| Temperature Range: | -25°C~+85°C |
| Contact Resistance: | 20m Omega Max |
| Insulation Resistance: | 1000M Omega Min |
| Withstanding Voltage: | 1000V AC/minute |
Dupont 2.54mm Pitch Connector: Features, Applications and Advantages
Product Overview
The Dupont 2.54mm pitch connector is a widely used standardized interconnect solution, primarily for wire-to-board and wire-to-wire connections. Named after its 2.54mm (0.1 inch) pin spacing, this connector has become an ideal choice for electronic prototyping, industrial control systems, and consumer electronics applications.
Key Features
（1）Standardized Design
Uniform pitch: 2.54mm (0.1 inch) spacing compatible with most PCB layouts and breadboards
Multiple pin configurations: Available in single-row (1xN) or double-row (2xN) arrangements with flexible pin counts (typically 2P to 40P)
Versatile combinations: Offers male/female headers and terminals for various connection needs
（2）Reliable Electrical Performance
Current & voltage: Rated for 3A current and 250V, suitable for low-voltage signal transmission and low-power supply
Low contact resistance: High-quality phosphor bronze tin-plated terminals ensure stable conductivity
Insulation performance: PA66/PBT material with UL94V-0 flame rating and high temperature resistance
（3）Mechanical Durability
Simple locking mechanism: Some models feature retention clips to prevent accidental disconnection
Mating cycles: Standard versions withstand 500+ insertions, high-reliability versions up to 1000 cycles
Terminal retention: ≥15N terminal holding force ensures connection stability
（4）Diverse Interface Options
Available in straight/right-angle/SMT configurations
Options include housed or bare terminal designs for different applications
Typical Applications
（1）Wire-to-Board Applications
Development board interfaces (Arduino/Raspberry Pi etc.)
Industrial control system signal transmission
Home appliance control board wiring
Instrumentation sensor connections
（2）Wire-to-Wire Applications
Jumper wire connections between test equipment
Inter-module signal interconnection
Temporary wiring for test/measurement devices
Internal cable connections for electronic products
（3）Special Applications
Electronics education and training
Maker project rapid prototyping
Temporary connections for electronic repairs
Competitive Advantages
（1）Excellent Compatibility
Fully compliant with 0.1 inch standard pitch
Perfectly matches development boards and breadboards
Can replace various similar connectors, reducing inventory needs
（2）Outstanding Cost Performance
Mass production provides significant cost advantages
No special tools required for assembly
Simplifies supply chain management with shorter lead times
（3）User-Friendly Design
Supports manual crimping and soldering
Color-coded for easy wire identification
Modular design enables flexible configurations
（4）Reliable Quality Assurance
Certified to UL/CE standards
Strict quality control system
Mature manufacturing process ensures consistency
Conclusion
The Dupont 2.54mm pitch connector has become an industry benchmark with its standardized design, reliable performance and flexible applications. For both wire-to-board and wire-to-wire connections, it provides simple yet effective solutions. Its exceptional compatibility and cost-effectiveness make it widely adopted in industrial controls, consumer electronics and educational applications.
