Pluggable terminal blocks (or pluggable connectors, plug-in terminal blocks), are devices used to provide connections between wires in electrical systems. The PCB pluggable terminal block is composed of plug and socket, the socket connector is installed on the PCB board, and the plug is inserted into it to complete the electrical connection. It can easily connect or disconnect wires without the help of other tools. This design makes electrical installation and maintenance easier and more efficient. It is the best choice for those application scenarios that need to be disconnected frequently.
SCONDAR provides 3.5mm, 3.81mm, 5.0mm, 5.08mm, 7.5mm, 7.62mm pitch, 2 pin to 24 pin PCB pluggable terminal block, If you didn’t find the PCB pluggable terminal block connector you want, welcome to contact us for help.
SCT15EDGK-3.50-xxB4650
- Pitch: 3.5mm
- Rated voltage: 300V
- Rated surge voltag: 2.5KV
- Rated current: 8A
- Conductor cross section: 28~16AWG
- Rated Torque: 4.43[Lb. in]
- Strip length: 6~7mm
- Ambient temperature: -40℃~105℃
SCT15EDGK-3.81-xxB4650
- Pitch: 3.81mm
- Rated voltage: 300V
- Rated surge voltag: 2.5KV
- Rated current: 8A
- Conductor cross section: 28~18AWG
- Rated Torque: 1.80[Lb. in]
- Strip length: 7~8mm
- Ambient temperature: -40℃~105℃
SCT2EDGK-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/20A
- Conductor cross section: 28~12AWG
- Torque: 0.5N.m
- Strip length: 7mm
- Ambient temperature: -40℃~105℃
SCT2EDGKA-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/18A
- Conductor cross section: 28~12AWG
- Torque: 0.6N.m
- Strip length: 7mm
- Ambient temperature: -40℃~105℃
SCT2EDGKB-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/18A
- Conductor cross section: 28~12AWG
- Torque: 0.6N.m
- Strip length: 7mm
- Ambient temperature: -40℃~105℃
SCT2EDGKM-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/20A
- Conductor cross section: 28~12AWG
- Torque: 0.5N.m
- Strip length: 7mm
- Ambient temperature: -40℃~105℃
SCT2EDGKC-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 10A/20A
- Conductor cross section: 28~12AWG
- Torque: 0.4N.m
- Strip length: 10mm
- Ambient temperature: -40℃~105℃
SCT15EDGVC-3.50-xxB4650
- Pitch: 3.5mm/3.81mm
- Direction: Vertical
- Rated voltage: 300V/250V
- Rated surge voltag: 2.5KV
- Rated current: 8A/7A
- Ambient temperature: -40℃~105℃
SCT15EDGRC-3.81-xxB4650
- Pitch: 3.5mm/3.81mm
- Direction: Right-Angle
- Rated voltage: 300V/250V
- Rated surge voltag: 2.5KV
- Rated current: 8A/7A
- Ambient temperature: -40℃~105℃

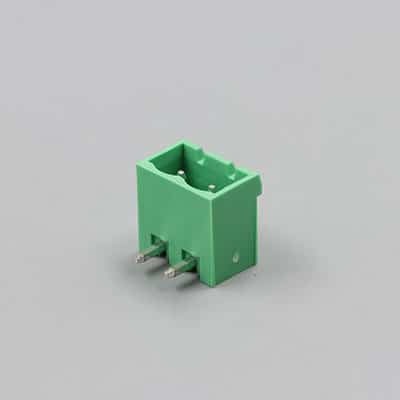

SCT2EDGRC-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Direction: Right-Angle
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/20A
- Ambient temperature: -40℃~105℃
SCT2EDGVC-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Direction: Vertical
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/20A
- Ambient temperature: -40℃~105℃
SCT2EDGV-5.08-xxB4650
- Pitch: 5.0mm/5.08mm
- Direction: Vertical
- Rated voltage: 300V/320V
- Rated surge voltag: 4KV
- Rated current: 15A/20A
- Ambient temperature: -40℃~105℃
A pluggable terminal block is an electrical connector system designed for easy and secure wiring connections in various applications. These blocks consist of a plug-and-socket combination, allowing quick and simple connection and disconnection of wires without the need for additional tools.
Key Features
Modular Design: The pluggable terminal block system is typically modular, meaning it can be customized with multiple connection points to fit specific wiring needs. The plug-in design allows for easy installation and removal.
Secure Connections: These blocks provide a firm and reliable connection for electrical circuits, ensuring the wires are tightly held in place. Many designs incorporate locking mechanisms to prevent accidental disconnections due to vibration or movement.
Ease of Use: Pluggable terminal blocks are designed for easy, tool-free connections, simplifying the process for electricians and engineers. This saves time during assembly and maintenance, as wires can be plugged or unplugged directly.
Versatility: Available in various sizes, pitch options (distance between pins), and current/voltage ratings, pluggable terminal blocks can be used in a wide range of industries such as automotive, industrial automation, HVAC, and more.
High Durability: These connectors are built to handle harsh environments, with some versions designed for high-temperature resistance, chemical exposure, and mechanical stress.
Applications
Pluggable terminal blocks are commonly used in:
- Control Panels: They provide quick wiring solutions for complex control systems where multiple connections need to be managed efficiently.
- Industrial Machinery: Their secure connection capability makes them ideal for machines that undergo vibrations or movement.
- Building Automation: Pluggable terminal blocks are used in systems like lighting, HVAC, and security systems where connections may need to be frequently updated or modified.
Conclusion
Pluggable terminal blocks offer a convenient and efficient solution for connecting electrical wires. With their secure, modular, and easy-to-use design, they provide a reliable connection method in a variety of industries and applications.
