JST Header, also known as JST Socket, usually refers to the part of the JST wire to board connector that is soldered to the board end. Mainly divided into four types: SMD Vertical Header, SMD Right-Angle Header, Through Hole Vertical Header, Right-Angle Header. The most widely used ones are JST XH, PH, SH, GH, VH, ZH header connector, etc.
Scondar manufacturing reliable single row and dual row JST header from 0.8mm to 7.5mm pitch or even bigger. Scondar can help you come through from ideas to products with our rich experience on OEM ODM connectors. And we can also offer ORIGINAL connectors according to your request when you need cable assemblies.

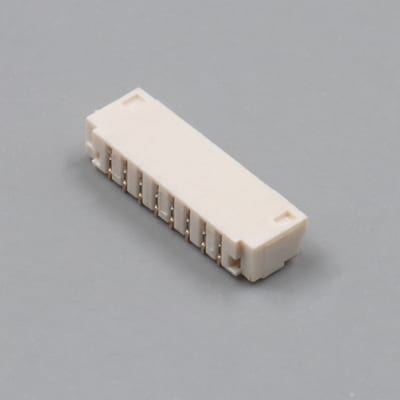

SCT0800 Series

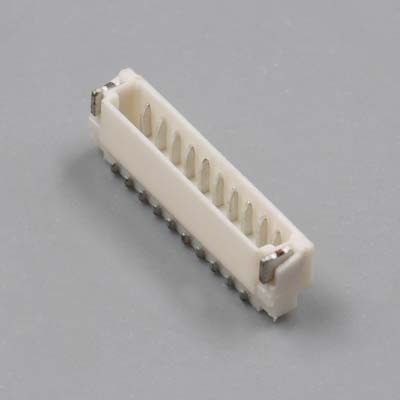

Cross: JST SUR Connector
Pitch: 0.8mm
- Circuits: 2 – 22
- Current: 0.5A
- Wire AWG: #32,36

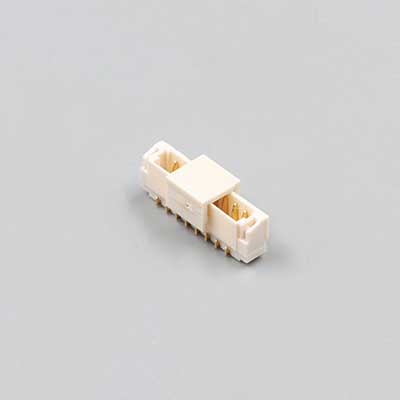

SCT0801 Series

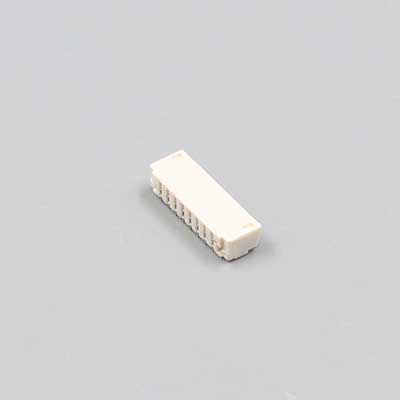

Cross: JST SUH Series
Pitch: 0.8mm
- Circuits: 2 – 22
- Current: 0.5A
- Wire AWG: #32,36
SCT1001 Series

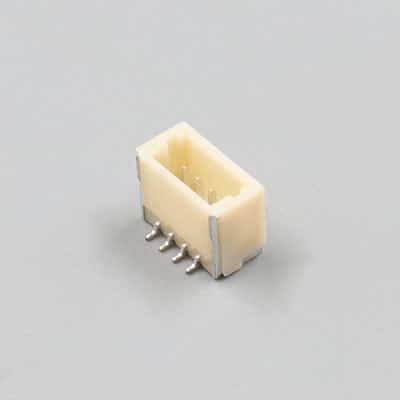

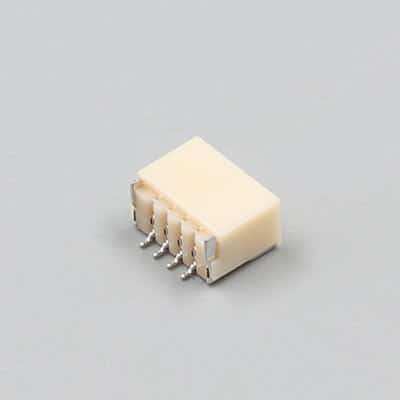

Cross: JST SH Connector
Pitch: 1.0mm
- Circuits: 2 – 20
- Current: 1.0A
- Wire AWG: #28 – 32

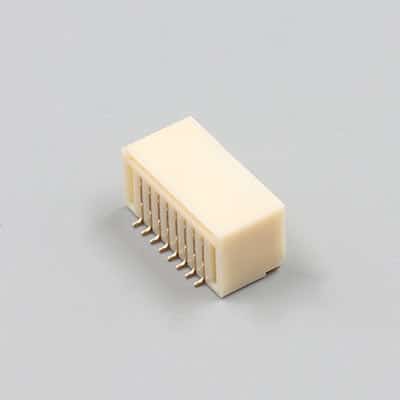

SCT1002 Series

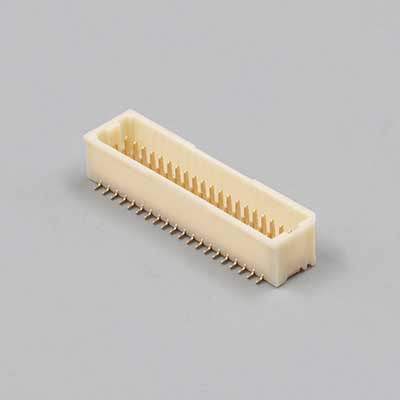

Cross: JST SHD Connector
Pitch: 1.0mm
- Circuits: 2*6, 2*8, 2*10, 2*15, 2*20, 2*25
- Current: 1.0A
- Wire AWG: #28 – 32

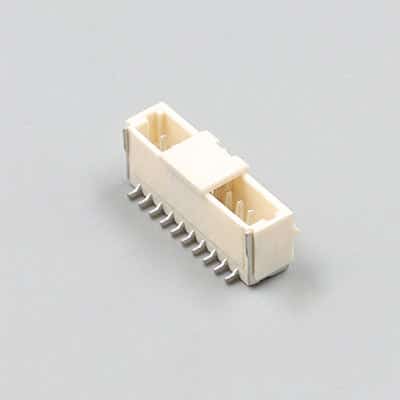

SCT1010 Series

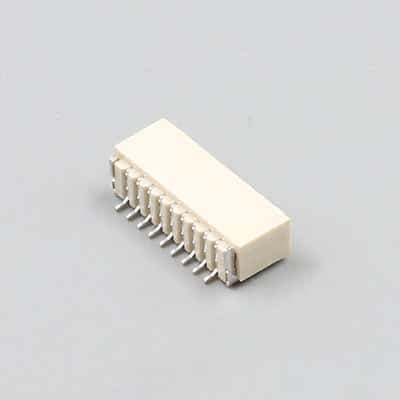

Cross: JST NSH Connector
Pitch: 1.0mm
- Circuits: 2 – 20
- Current: 1.0A
- Wire AWG: #28 – 32
SCT1200 Series

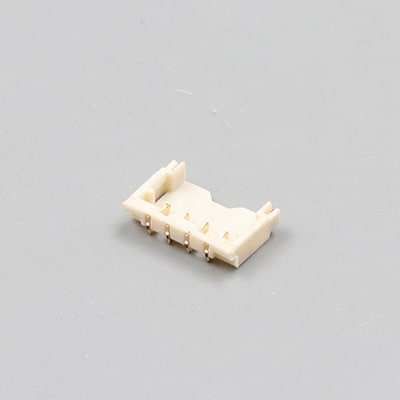

Cross: JST ACH Connector
Pitch: 1.2mm
- Circuits: 2 – 15
- Current: 2.0A
- Wire AWG: #28 – 32

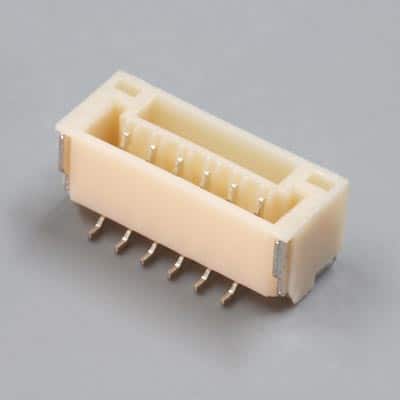

SCT1258 Series

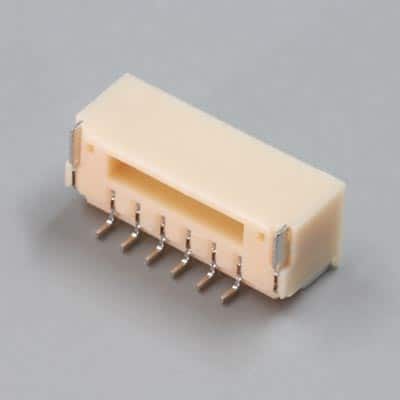

Cross: JST GH Connector
Pitch: 1.25mm
- Circuits: 2 – 15
- Current: 1.0A
- Wire AWG: #26 – 30

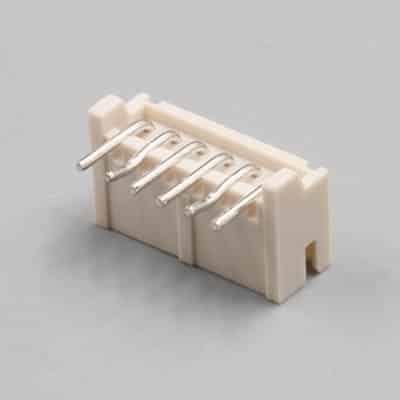

SCT1501 Series

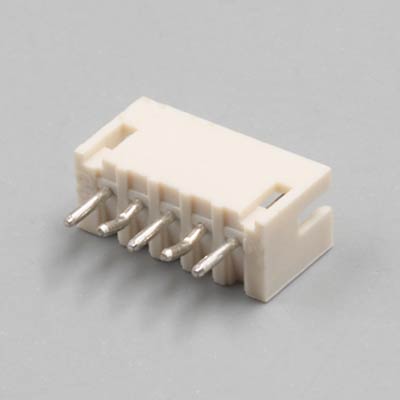

Cross: JST ZH Connector
Pitch: 1.5mm
- Circuits: 2 – 16
- Current: 1.0A
- Wire AWG: #28 – 32
SCT2001 Series

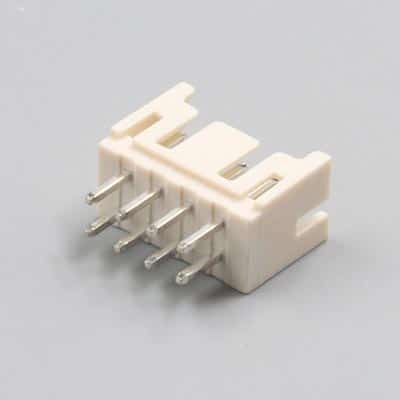

Cross: JST PH Connector
Pitch: 2.0mm
- Circuits: 2 – 16
- Current: 2.0A
- Wire AWG: #22 – 28
SCT2004 Series

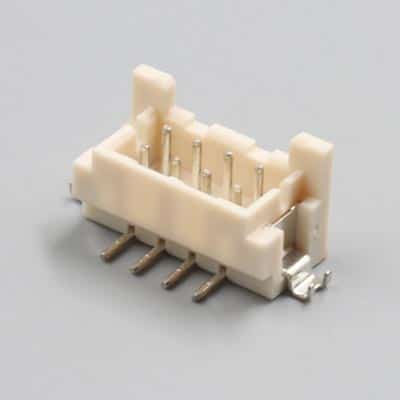

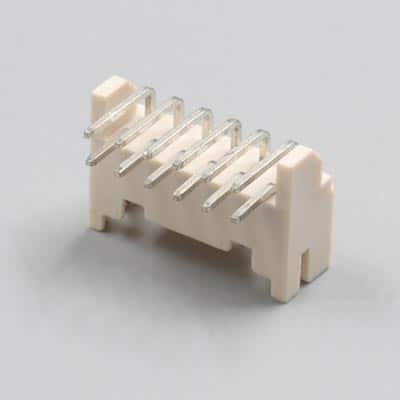

Cross: JST PHD Connector
Pitch: 2.0mm
- Circuits: 2*2 – 2*20
- Current: 2.0A
- Wire AWG: #24 – 28

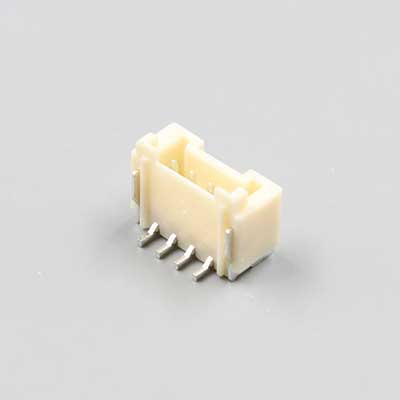

SCT2012 Series

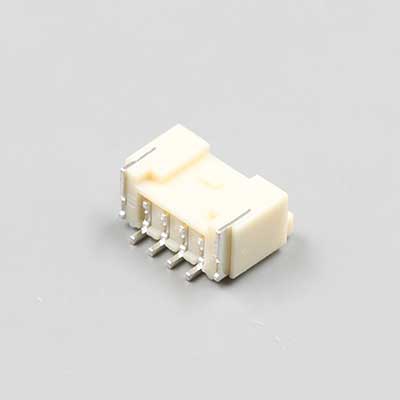

Cross: JST PA Connector
Pitch: 2.0mm
- Circuits: 2 – 16
- Current: 2.0A
- Wire AWG: #22 – 28

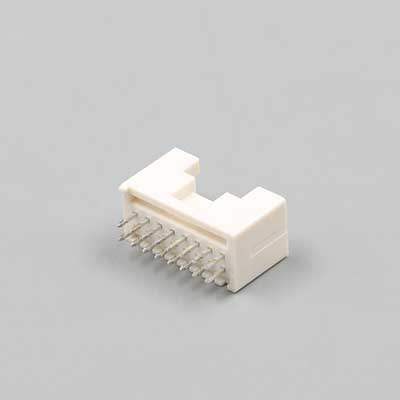

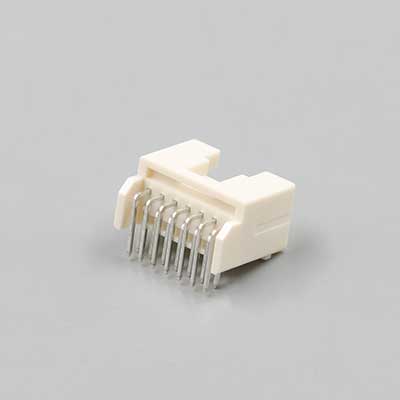

SCT2020 Series
Cross: JST PUD Connector
Pitch: 2.0mm
- Circuits: 2*4 – 2*20
- Current: 3.0A
- Wire AWG: #22 – 28
SCT2501 Series
Cross: JST XH Connector
Pitch: 2.5mm
- Circuits: 2 – 16
- Current: 3.0A
- Wire AWG: #22 – 28

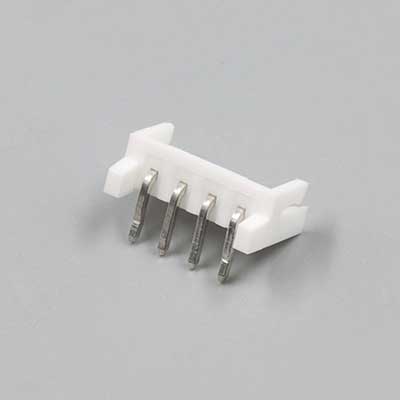

SCT2511 Series

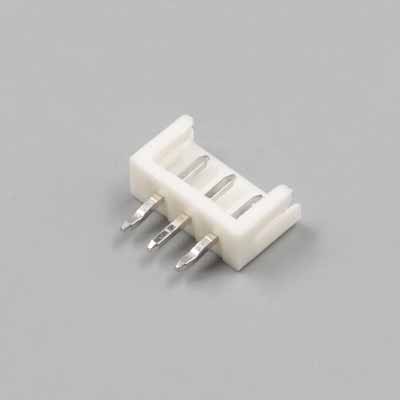

Cross: JST EH Connector
Pitch: 2.5mm
- Circuits: 2 – 16
- Current: 3.0A
- Wire AWG: #22 – 28

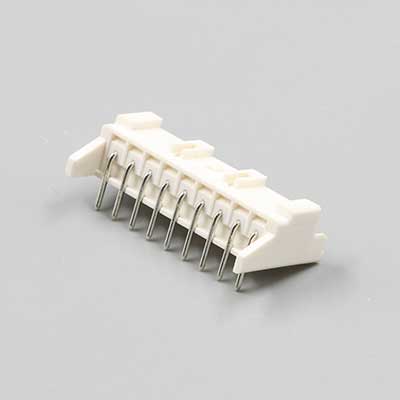

SCT2518 Series

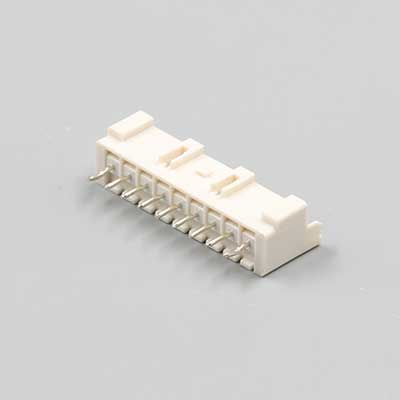

Cross: JST XA Connector
Pitch: 2.5mm
- Circuits: 2 – 19
- Current: 3.0A
- Wire AWG: #22 – 28
SCT3961 Series
Cross: JST VH Connector
Pitch: 3.96mm
- Circuits: 2 – 12
- Current: 7.0A
- Wire AWG: #18 – 22
SCT7501 Series

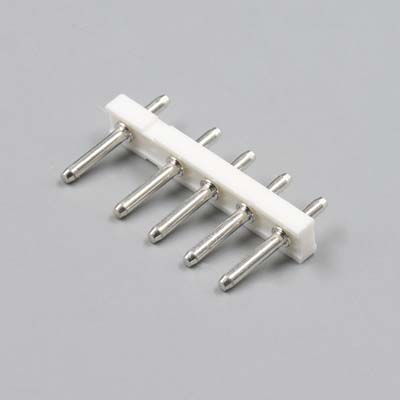

Cross: JST V Connector
Pitch: 7.5mm
- Circuits: 2 – 6
- Current: 7.0A
- Wire AWG: #20 – 26
