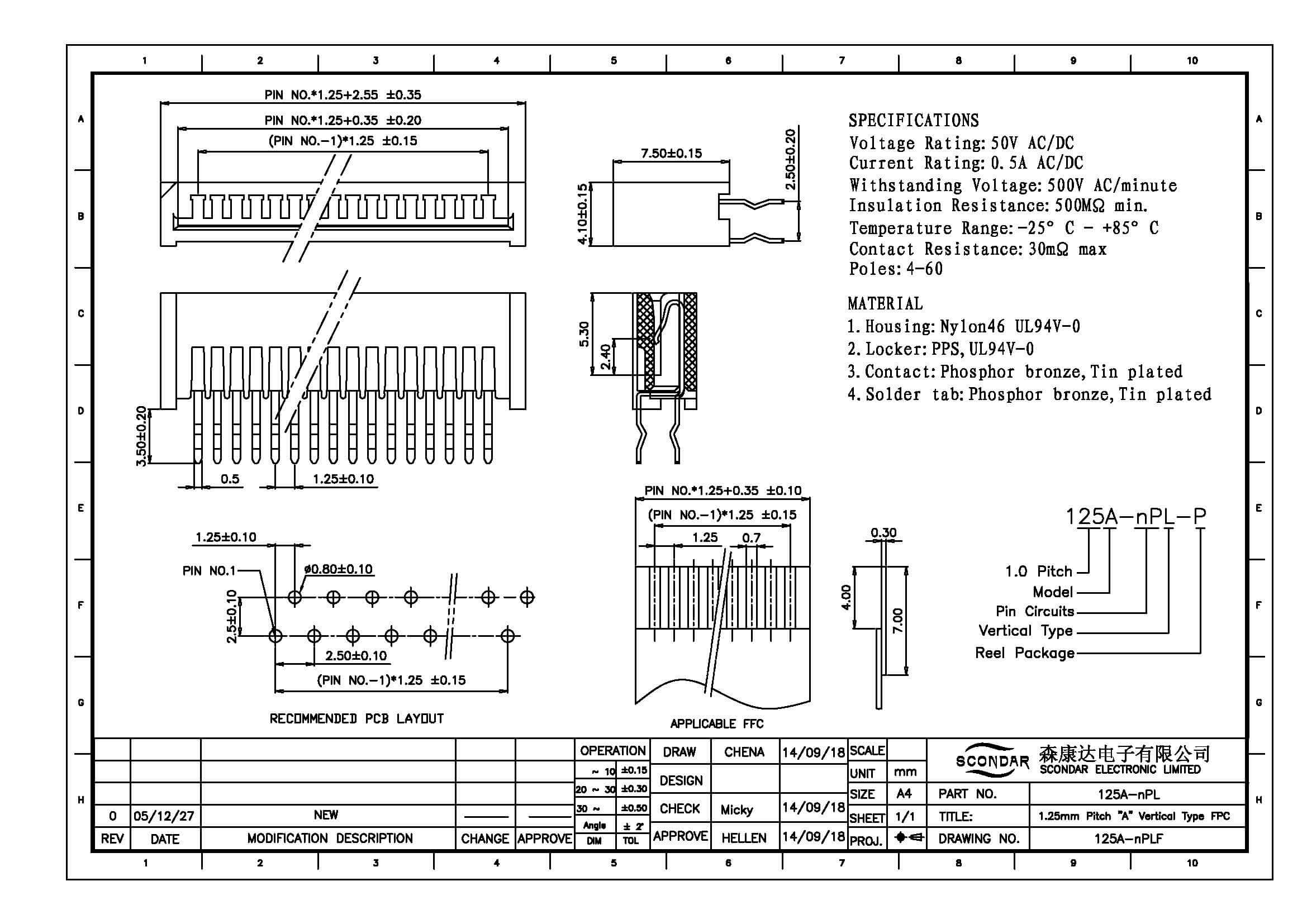

125A-NPL
FFC/FPC Connector, Through-Hole, Vertical, ZIF Receptacle
Specification
| Series | 1.25mm A Type Series |
|---|---|
| Contact Pitch | 1.25mm |
| No.of Contacts | 04 to 35 positions |
| Height | 4.10mm |
| Package | Reel,Tube |
| Voltage Rating: | 200V AC/DC |
| Current Rating: | 0.5A AC/DC |
| Withstand voltage： | 500V |
| Contact resistance： | 30mΩ MAX |
| Insulation resistance： | 500MΩ MIN |
| Working temperature： | -25℃～+85℃ |
| Applicable FPC/FFC： | 1.25mm |
| MATERIAL | |
| Housing： | LCP UL94-V0 |
| Contact： | Phosphor bronze Tin-plated |
