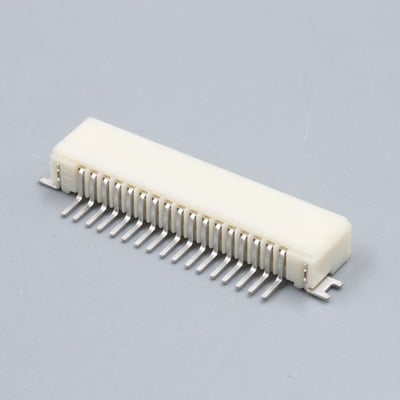

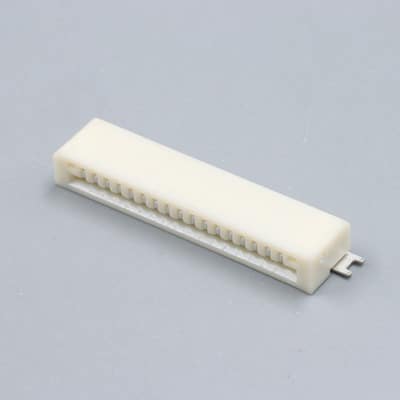

FPC1031A0-xxPRSSS1
FFC/FPC Connector,SMT (Surface Mount), Right-angle, Bottom Contact Style, ZIF Receptacle
Specification
| Contact Pitch | 1.0mm |
|---|---|
| No.of Contacts | 3 ~ 35 |
| Height | 3.1 mm |
| Package | Reel,Tube |
| Compatible | Molex 52793 Series |
| Voltage Rating: | 125V AC/DC |
| Current Rating: | 0.5A AC/DC |
| Withstand voltage： | 500V |
| Contact resistance： | 30mΩ MAX |
| Insulation resistance： | 100MΩ MIN |
| Working temperature： | -25℃～+85℃ |
| Applicable FPC/FFC： | 0.1mm |
| MATERIAL | |
| Housing： | LCP UL94-V0 |
| Contact： | Phosphor bronze Tin-plated |
Part No. Cross Reference
| SCONDAR P/N | Molex P/N | Circuits |
|---|---|---|
| FPC1031A0-03PRSSS1 | – | 3 |
| FPC1031A0-04PRSSS1 | 52793-0470 | 4 |
| FPC1031A0-05PRSSS1 | 52793-0570 | 5 |
| FPC1031A0-06PRSSS1 | 52793-0670 | 6 |
| FPC1031A0-07PRSSS1 | 52793-0770 | 7 |
| FPC1031A0-08PRSSS1 | 52793-0870 | 8 |
| FPC1031A0-09PRSSS1 | 52793-0970 | 9 |
| FPC1031A0-10PRSSS1 | 52793-1070 | 10 |
| FPC1031A0-11PRSSS1 | 52793-1170 | 11 |
| FPC1031A0-12PRSSS1 | 52793-1270 | 12 |
| FPC1031A0-13PRSSS1 | 52793-1370 | 13 |
| FPC1031A0-14PRSSS1 | 52793-1470 | 14 |
| FPC1031A0-15PRSSS1 | 52793-1570 | 15 |
| FPC1031A0-16PRSSS1 | 52793-1670 | 16 |
| FPC1031A0-17PRSSS1 | 52793-1770 | 17 |
| FPC1031A0-18PRSSS1 | 52793-1870 | 18 |
| FPC1031A0-19PRSSS1 | 52793-1970 | 19 |
| FPC1031A0-20PRSSS1 | 52793-2070 | 20 |
| FPC1031A0-21PRSSS1 | 52793-2170 | 21 |
| FPC1031A0-22PRSSS1 | 52793-2270 | 22 |
| FPC1031A0-23PRSSS1 | 52793-2370 | 23 |
| FPC1031A0-24PRSSS1 | 52793-2470 | 24 |
| FPC1031A0-25PRSSS1 | 52793-2570 | 25 |
| FPC1031A0-26PRSSS1 | 52793-2670 | 26 |
| FPC1031A0-27PRSSS1 | 52793-2770 | 27 |
| FPC1031A0-28PRSSS1 | 52793-2870 | 28 |
| FPC1031A0-29PRSSS1 | 52793-2970 | 29 |
| FPC1031A0-30PRSSS1 | 52793-3070 | 30 |
| FPC1031A0-31PRSSS1 | – | 31 |
| FPC1031A0-32PRSSS1 | – | 32 |
| FPC1031A0-33PRSSS1 | – | 33 |
| FPC1031A0-34PRSSS1 | – | 34 |
| FPC1031A0-35PRSSS1 | – | 35 |
