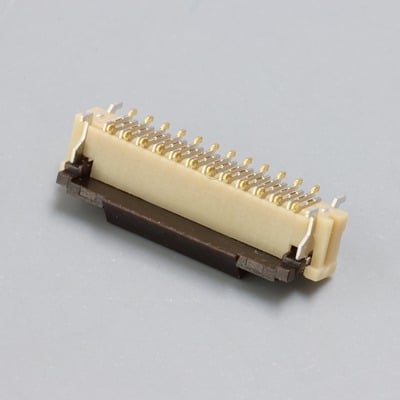

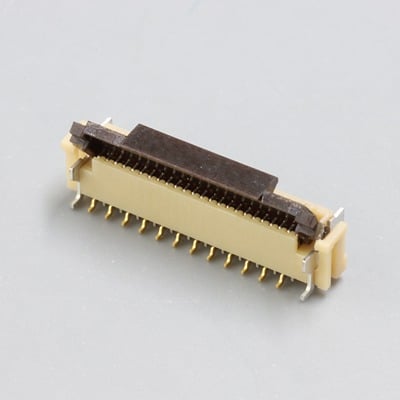

FPC0525N2-xxPVSZG1
0.5mm Pitch FFC/FPC Connector, Height 2.0mm, SMT (Surface Mount), Vertical, Bottom Contact Style, ZIF Receptacle, Front Flip
Specification
| Contact Pitch | 0.50mm |
|---|---|
| No.of Contacts | 10 ~ 60 |
| Height | 2.00mm |
| Package | Reel,Tube |
| Compatible | Hirose FH12 Series |
Previous
Next
| Voltage Rating: | 50V AC/DC |
| Current Rating: | 0.5A AC/DC |
| Withstand voltage： | 200V |
| Contact resistance： | 30mΩ MAX |
| Insulation resistance： | 500MΩ MIN |
| Working temperature： | -40℃～+85℃ |
| Applicable FPC/FFC： | 0.50mm |
| MATERIAL | |
| Housing： | LCP UL94-V0 |
| Contact： | Phosphor bronze Tin-plated |
Part No. Cross Reference
| SCONDAR P/N | Hirose P/N | Circuits |
|---|---|---|
| – | FH12-6S-0.5SVA(54) | 6 |
| FPC0525N2-10PVSZG1 | FH12-10S-0.5SVA(54) | 10 |
| FPC0525N2-11PVSZG1 | FH12-11S-0.5SVA(54) | 11 |
| FPC0525N2-12PVSZG1 | FH12-12S-0.5SVA(54) | 12 |
| FPC0525N2-13PVSZG1 | FH12-13S-0.5SVA(54) | 13 |
| FPC0525N2-14PVSZG1 | FH12-14S-0.5SVA(54) | 14 |
| FPC0525N2-15PVSZG1 | FH12-15S-0.5SVA(54) | 15 |
| FPC0525N2-16PVSZG1 | FH12-16S-0.5SVA(54) | 16 |
| FPC0525N2-17PVSZG1 | FH12-17S-0.5SVA(54) | 17 |
| FPC0525N2-18PVSZG1 | FH12-18S-0.5SVA(54) | 18 |
| FPC0525N2-19PVSZG1 | FH12-19S-0.5SVA(54) | 19 |
| FPC0525N2-20PVSZG1 | FH12-20S-0.5SVA(54) | 20 |
| FPC0525N2-21PVSZG1 | FH12-21S-0.5SVA(54) | 21 |
| FPC0525N2-22PVSZG1 | FH12-22S-0.5SVA(54) | 22 |
| FPC0525N2-23PVSZG1 | FH12-23S-0.5SVA(54) | 23 |
| FPC0525N2-24PVSZG1 | FH12-24S-0.5SVA(54) | 24 |
| FPC0525N2-25PVSZG1 | FH12-25S-0.5SVA(54) | 25 |
| FPC0525N2-26PVSZG1 | FH12-26S-0.5SVA(54) | 26 |
| FPC0525N2-27PVSZG1 | FH12-27S-0.5SVA(54) | 27 |
| FPC0525N2-28PVSZG1 | FH12-28S-0.5SVA(54) | 28 |
| FPC0525N2-29PVSZG1 | FH12-29S-0.5SVA(54) | 29 |
| FPC0525N2-30PVSZG1 | FH12-30S-0.5SVA(54) | 30 |
| FPC0525N2-31PVSZG1 | FH12-31S-0.5SVA(54) | 31 |
| FPC0525N2-32PVSZG1 | FH12-32S-0.5SVA(54) | 32 |
| FPC0525N2-33PVSZG1 | FH12-33S-0.5SVA(54) | 33 |
| FPC0525N2-34PVSZG1 | FH12-34S-0.5SVA(54) | 34 |
| FPC0525N2-35PVSZG1 | FH12-35S-0.5SVA(54) | 35 |
| FPC0525N2-36PVSZG1 | FH12-36S-0.5SVA(54) | 36 |
| FPC0525N2-37PVSZG1 | FH12-37S-0.5SVA(54) | 37 |
| FPC0525N2-38PVSZG1 | FH12-38S-0.5SVA(54) | 38 |
| FPC0525N2-39PVSZG1 | FH12-39S-0.5SVA(54) | 39 |
| FPC0525N2-40PVSZG1 | FH12-40S-0.5SVA(54) | 40 |
| FPC0525N2-41PVSZG1 | FH12-41S-0.5SVA(54) | 41 |
| FPC0525N2-42PVSZG1 | FH12-42S-0.5SVA(54) | 42 |
| FPC0525N2-43PVSZG1 | FH12-43S-0.5SVA(54) | 43 |
| FPC0525N2-44PVSZG1 | FH12-44S-0.5SVA(54) | 44 |
| FPC0525N2-45PVSZG1 | FH12-45S-0.5SVA(54) | 45 |
| FPC0525N2-46PVSZG1 | FH12-46S-0.5SVA(54) | 46 |
| FPC0525N2-47PVSZG1 | FH12-47S-0.5SVA(54) | 47 |
| FPC0525N2-48PVSZG1 | FH12-48S-0.5SVA(54) | 48 |
| FPC0525N2-49PVSZG1 | FH12-49S-0.5SVA(54) | 49 |
| FPC0525N2-50PVSZG1 | FH12-50S-0.5SVA(54) | 50 |
| FPC0525N2-51PVSZG1 | FH12-51S-0.5SVA(54) | 51 |
| FPC0525N2-52PVSZG1 | FH12-52S-0.5SVA(54) | 52 |
| FPC0525N2-53PVSZG1 | FH12-53S-0.5SVA(54) | 53 |
| FPC0525N2-54PVSZG1 | FH12-54S-0.5SVA(54) | 54 |
| FPC0525N2-55PVSZG1 | FH12-55S-0.5SVA(54) | 55 |
| FPC0525N2-56PVSZG1 | FH12-56S-0.5SVA(54) | 56 |
| FPC0525N2-57PVSZG1 | FH12-57S-0.5SVA(54) | 57 |
| FPC0525N2-58PVSZG1 | FH12-58S-0.5SVA(54) | 58 |
| FPC0525N2-59PVSZG1 | FH12-59S-0.5SVA(54) | 59 |
| FPC0525N2-60PVSZG1 | FH12-60S-0.5SVA(54) | 60 |
