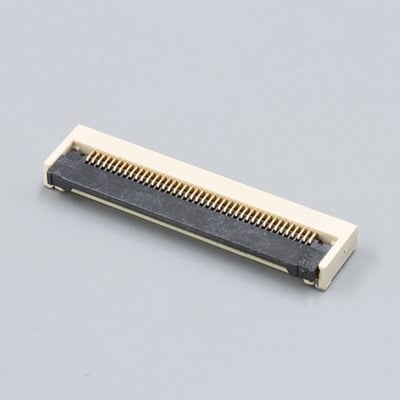

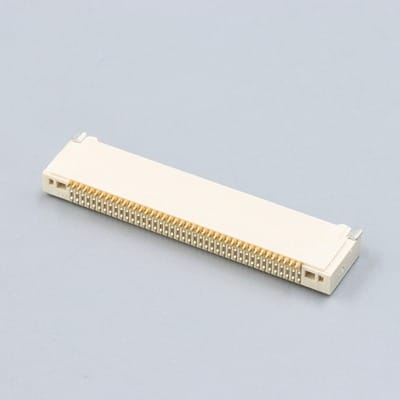

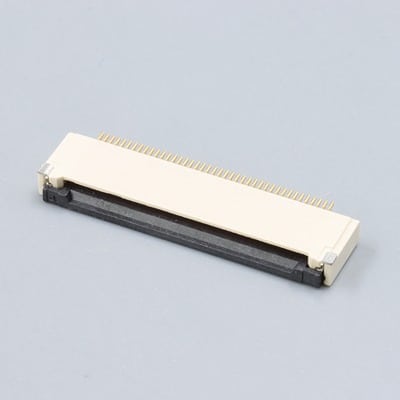

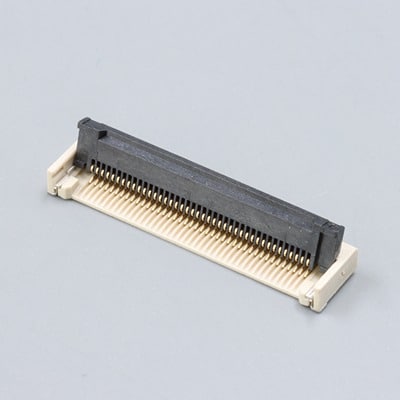

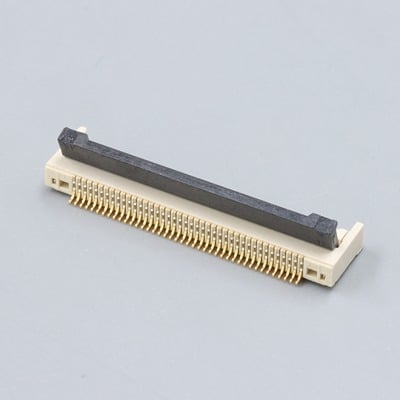

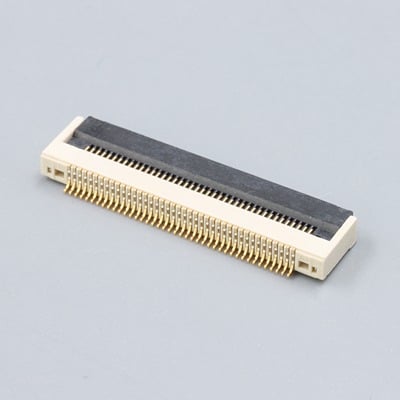

FPC0525I2-xxPRSXG1
0.5mm Pitch FFC/FPC Connector, Height 2.5mm, SMT (Surface Mount), Right-Angle, Front Flip, Bottom Contact Style, ZIF Receptacle.
Specification
| Contact Pitch | 0.50mm |
|---|---|
| No.of Contacts | 4 ~ 80 |
| Height | 2.50mm |
| Package | Reel,Tube |
| Compatible | Hirose FH28 Series |
Previous
Next
| Voltage Rating: | 50V AC/DC |
| Current Rating: | 0.5A AC/DC |
| Withstand voltage： | 500V |
| Contact resistance： | 30mΩ MAX |
| Insulation resistance： | 500MΩ MIN |
| Working temperature： | -40℃～+105℃ |
| Applicable FPC/FFC： | 0.50mm |
| MATERIAL | |
| Housing： | LCP UL94-V0 |
| Contact： | Phosphor bronze Tin-plated |
Part No. Cross Reference
| SCONDAR P/N | Hirose P/N | Circuits |
|---|---|---|
| FPC0525I2-04PRSXG1 | – | 4 |
| FPC0525I2-05PRSXG1 | – | 5 |
| FPC0525I2-06PRSXG1 | – | 6 |
| FPC0525I2-07PRSXG1 | – | 7 |
| FPC0525I2-08PRSXG1 | – | 8 |
| FPC0525I2-09PRSXG1 | – | 9 |
| FPC0525I2-10PRSXG1 | FH28-10S-0.5SH | 10 |
| FPC0525I2-11PRSXG1 | FH28-11S-0.5SH | 11 |
| FPC0525I2-12PRSXG1 | FH28-12S-0.5SH | 12 |
| FPC0525I2-13PRSXG1 | FH28-13S-0.5SH | 13 |
| FPC0525I2-14PRSXG1 | FH28-14S-0.5SH | 14 |
| FPC0525I2-15PRSXG1 | FH28-15S-0.5SH | 15 |
| FPC0525I2-16PRSXG1 | FH28-16S-0.5SH | 16 |
| FPC0525I2-17PRSXG1 | FH28-17S-0.5SH | 17 |
| FPC0525I2-18PRSXG1 | FH28-18S-0.5SH | 18 |
| FPC0525I2-19PRSXG1 | FH28-19S-0.5SH | 19 |
| FPC0525I2-20PRSXG1 | FH28D-20S-0.5SH | 20 |
| FPC0525I2-21PRSXG1 | FH28-21S-0.5SH | 21 |
| FPC0525I2-22PRSXG1 | FH28-22S-0.5SH | 22 |
| FPC0525I2-23PRSXG1 | FH28-23S-0.5SH | 23 |
| FPC0525I2-24PRSXG1 | FH28-24S-0.5SH | 24 |
| FPC0525I2-25PRSXG1 | FH28-25S-0.5SH | 25 |
| FPC0525I2-26PRSXG1 | FH28-26S-0.5SH | 26 |
| FPC0525I2-27PRSXG1 | FH28-27S-0.5SH | 27 |
| FPC0525I2-28PRSXG1 | FH28D-28S-0.5SH | 28 |
| FPC0525I2-29PRSXG1 | FH28-29S-0.5SH | 29 |
| FPC0525I2-30PRSXG1 | FH28D-30S-0.5SH | 30 |
| FPC0525I2-31PRSXG1 | FH28-31S-0.5SH | 31 |
| FPC0525I2-32PRSXG1 | FH28-32S-0.5SH | 32 |
| FPC0525I2-33PRSXG1 | FH28-33S-0.5SH | 33 |
| FPC0525I2-34PRSXG1 | FH28-34S-0.5SH | 34 |
| FPC0525I2-35PRSXG1 | FH28-35S-0.5SH | 35 |
| FPC0525I2-36PRSXG1 | FH28-36S-0.5SH | 36 |
| FPC0525I2-37PRSXG1 | FH28-37S-0.5SH | 37 |
| FPC0525I2-38PRSXG1 | FH28-38S-0.5SH | 38 |
| FPC0525I2-39PRSXG1 | FH28-39S-0.5SH | 39 |
| FPC0525I2-40PRSXG1 | FH28-40S-0.5SH | 40 |
| FPC0525I2-41PRSXG1 | FH28-41S-0.5SH | 41 |
| FPC0525I2-42PRSXG1 | FH28-42S-0.5SH | 42 |
| FPC0525I2-43PRSXG1 | FH28-43S-0.5SH | 43 |
| FPC0525I2-44PRSXG1 | FH28-44S-0.5SH | 44 |
| FPC0525I2-45PRSXG1 | FH28-45S-0.5SH | 45 |
| FPC0525I2-46PRSXG1 | FH28-46S-0.5SH | 46 |
| FPC0525I2-47PRSXG1 | FH28-47S-0.5SH | 47 |
| FPC0525I2-48PRSXG1 | FH28-48S-0.5SH | 48 |
| FPC0525I2-49PRSXG1 | FH28-49S-0.5SH | 49 |
| FPC0525I2-50PRSXG1 | FH28D-50S-0.5SH | 50 |
| FPC0525I2-51PRSXG1 | FH28-51S-0.5SH | 51 |
| FPC0525I2-52PRSXG1 | FH28-52S-0.5SH | 52 |
| FPC0525I2-53PRSXG1 | FH28-53S-0.5SH | 53 |
| FPC0525I2-54PRSXG1 | FH28-54S-0.5SH | 54 |
| FPC0525I2-55PRSXG1 | FH28D-55S-0.5SH | 55 |
| FPC0525I2-56PRSXG1 | FH28-56S-0.5SH | 56 |
| FPC0525I2-57PRSXG1 | FH28-57S-0.5SH | 57 |
| FPC0525I2-58PRSXG1 | FH28-58S-0.5SH | 58 |
| FPC0525I2-59PRSXG1 | FH28-59S-0.5SH | 59 |
| FPC0525I2-60PRSXG1 | FH28-60S-0.5SH | 60 |
| FPC0525I2-61PRSXG1 | FH28-61S-0.5SH | 61 |
| FPC0525I2-62PRSXG1 | FH28-62S-0.5SH | 62 |
| FPC0525I2-63PRSXG1 | FH28-63S-0.5SH | 63 |
| FPC0525I2-64PRSXG1 | FH28D-64S-0.5SH | 64 |
| FPC0525I2-65PRSXG1 | FH28-65S-0.5SH | 65 |
| FPC0525I2-66PRSXG1 | FH28-66S-0.5SH | 66 |
| FPC0525I2-67PRSXG1 | FH28-67S-0.5SH | 67 |
| FPC0525I2-68PRSXG1 | FH28D-68S-0.5SH | 68 |
| FPC0525I2-69PRSXG1 | FH28-69S-0.5SH | 69 |
| FPC0525I2-70PRSXG1 | FH28-70S-0.5SH | 70 |
| FPC0525I2-71PRSXG1 | FH28-71S-0.5SH | 71 |
| FPC0525I2-72PRSXG1 | FH28-72S-0.5SH | 72 |
| FPC0525I2-73PRSXG1 | FH28-73S-0.5SH | 73 |
| FPC0525I2-74PRSXG1 | FH28D-74S-0.5SH | 74 |
| FPC0525I2-75PRSXG1 | FH28-75S-0.5SH | 75 |
| FPC0525I2-76PRSXG1 | FH28-76S-0.5SH | 76 |
| FPC0525I2-77PRSXG1 | FH28-77S-0.5SH | 77 |
| FPC0525I2-78PRSXG1 | FH28-78S-0.5SH | 78 |
| FPC0525I2-79PRSXG1 | FH28-79S-0.5SH | 79 |
| FPC0525I2-80PRSXG1 | FH28H-80S-0.5SH | 80 |
