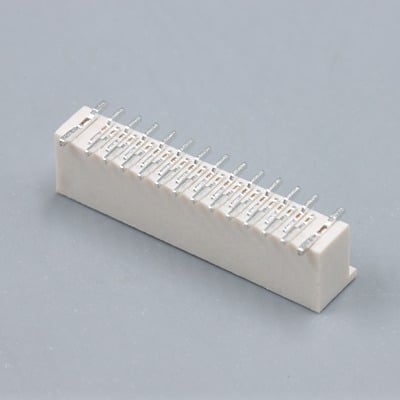

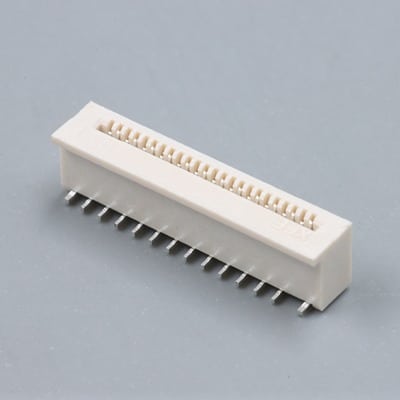

FPC0525D0-xxPVSZS1
FFC/FPC Connector, SMT (Surface Mount), Vertical, ZIF Receptacle
Specification
| Contact Pitch | 0.50mm |
|---|---|
| No.of Contacts | 8 ~ 40 |
| Height | 4.0mm |
| Package | Reel,Tube |
| Compatible | JST FLT Series, Molex 78127 Series |
| Voltage Rating: | 50V AC/DC |
| Current Rating: | 0.5A AC/DC |
| Withstand voltage： | 500V |
| Contact resistance： | 30mΩ MAX |
| Insulation resistance： | 500MΩ MIN |
| Working temperature： | -25℃～+85℃ |
| Applicable FPC/FFC： | 0.50mm |
| MATERIAL | |
| Housing： | LCP UL94-V0 |
| Contact： | Phosphor bronze Tin-plated |
| SCONDAR P/N | JST P/N | Molex P/N | Circuits |
|---|---|---|---|
| – | 06FLT-SM2-TB | 78127-0610 | 6 |
| – | – | 78127-0710 | 7 |
| FPC0525D0-08PVSZS1 | 08FLT-SM2-TB | 78127-0810 | 8 |
| – | – | 78127-0910 | 9 |
| FPC0525D0-10PVSZS1 | 10FLT-SM2-TB | 78127-1010 | 10 |
| – | – | 78127-1110 | 11 |
| FPC0525D0-12PVSZS1 | 12FLT-SM2-TB | 78127-1210 | 12 |
| – | – | 78127-1310 | 13 |
| FPC0525D0-14PVSZS1 | 14FLT-SM2-TB | 78127-1410 | 14 |
| – | – | 78127-1510 | 15 |
| FPC0525D0-16PVSZS1 | 16FLT-SM2-TB | 78127-1610 | 16 |
| – | – | 78127-1710 | 17 |
| FPC0525D0-18PVSZS1 | 18FLT-SM2-TB | 78127-1810 | 18 |
| – | – | 78127-1910 | 19 |
| FPC0525D0-20PVSZS1 | 20FLT-SM2-TB | 78127-2010 | 20 |
| – | – | 78127-2110 | 21 |
| FPC0525D0-22PVSZS1 | 22FLT-SM2-TB | 78127-2210 | 22 |
| – | – | 78127-2310 | 23 |
| FPC0525D0-24PVSZS1 | 24FLT-SM2-TB | 78127-2410 | 24 |
| – | – | 78127-2510 | 25 |
| FPC0525D0-26PVSZS1 | 26FLT-SM2-TB | 78127-2610 | 26 |
| – | – | 78127-2710 | 27 |
| FPC0525D0-28PVSZS1 | 28FLT-SM2-TB | 78127-2810 | 28 |
| – | – | 78127-2910 | 29 |
| FPC0525D0-30PVSZS1 | 30FLT-SM2-TB | 78127-3010 | 30 |
| – | – | 78127-3110 | 31 |
| FPC0525D0-32PVSZS1 | 32FLT-SM2-TB | 78127-3210 | 32 |
| – | – | 78127-3310 | 33 |
| FPC0525D0-34PVSZS1 | 34FLT-SM2-TB | 78127-3410 | 34 |
| – | – | 78127-3510 | 35 |
| FPC0525D0-36PVSZS1 | 36FLT-SM2-TB | 78127-3610 | 36 |
| – | – | – | 37 |
| FPC0525D0-38PVSZS1 | 38FLT-SM2-TB | – | 38 |
| – | – | – | 39 |
| FPC0525D0-40PVSZS1 | 40FLT-SM2-TB | – | 40 |
