- Terminal body:copper
- Insulation:NyIon、PC
- Tempersture:105°C、115°C
- Plating:tin

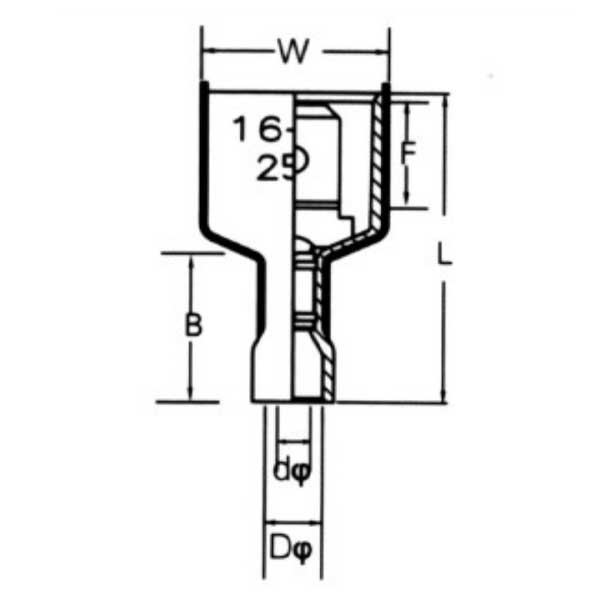

| Part Number | Wire Range | Max Current | Connecting spec | Tab Thickness | Dimension (mm) | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCONDAR | TE (Cross Reference) | (AWG#) | (mm) | W | F | L | B | Dφ | dφ | |||
| SCTMDFN1.25-250-PS141 | 0.5-1.5(22-16) | 10A | 0.8×6.35 | 0.8 | 6.35 | 7.7 | 24.5 | 11 | 4.5 | 1.7 | Red | |
| SCTMDFN2-250-PS141 | 1.5-2.5（16-14) | 15A | 0.8×6.35 | 0.8 | 6.35 | 7.7 | 24.5 | 11 | 4.5 | 2.3 | Blue | |
| SCTMDFN5.5-250-PS141 | 4-6 (12-10) | 24A | 0.8×6.35 | 0.8 | 6.35 | 7.7 | 24.5 | 13 | 4.5 | 3.4 | Yellow | |
| SCTMDFN1.25-187(5)-2-PL141 | 0.5-1.5 (22-16) | 10A | 0.8×4.8 | 0.5 | 10.4 | 6.3 | 20.4 | 10 | 6.1 | 1.7 | Red | |
| SCTMDFN1.25-187(8)-2-PL141 | 0.8×2.8 | 0.8 | 10.4 | 6.3 | 20.4 | 10 | 6.1 | 1.7 | ||||
| SCTMDFN1.25-187-2-PL141 | 0.8×6.35 | 0.8 | 12.3 | 7.7 | 21.8 | 10 | 6.1 | 1.7 | ||||
| SCTMDFN2-187(5)-2-PL141 | 1.5-2.5 (16-14) | 15A | 0.8X6.35 | 0.5 | 10.4 | 6.3 | 20.4 | 10 | 6.8 | 2.3 | Blue | |
| SCTMDFN2-187(8)-2-PL141 | 0.8X2.8 | 0.8 | 10.4 | 6.3 | 20.4 | 10 | 6.8 | 2.3 | ||||
| SCTMDFN2-187-2-PL141 | 0.8X6.35 | 0.8 | 12.3 | 7.7 | 21.8 | 10 | 6.8 | 2.3 | ||||
| SCTMDFN1.25-187(5)-PF141 | 0.5-1.5 (22-16) | 10A | 0.5×4.8 | 0.5 | 10.4 | 6.3 | 20.4 | 10 | 3.6 | 1.7 | Red | |
| SCTMDFN1.25-187(8)-PF141 | 0.8×4.8 | 0.8 | 10.4 | 6.3 | 20.4 | 10 | 3.6 | 1.7 | ||||
| SCTMDFN1.25-250-PF141 | 0.8×6.35 | 0.8 | 12.3 | 7.7 | 21.8 | 10 | 3.6 | 1.7 | ||||
| SCTMDFN2-187(5)-PF141 | 1.5-2.5(16-14) | 15A | 0.5×4.8 | 0.5 | 10.4 | 6.3 | 20.4 | 10 | 4.3 | 2.3 | Blue | |
| SCTMDFN2-187(8)-PF141 | 0.8×4.8 | 0.8 | 10.4 | 6.3 | 20.4 | 10 | 4.3 | 2.3 | ||||
| SCTMDFN2-250-PF141 | 0.8×6.35 | 0.8 | 12.3 | 7.7 | 21.8 | 10 | 4.3 | 2.3 | ||||
| SCTMDFN5.5-250-PF141 | 4-6 (12-10) | 24A | 0.8×6.35 | 0.8 | 12.3 | 7.7 | 21.8 | 10 | 6.5 | 3.4 | Yellow | |
| SCTFLDNY1.25-187(5)-PS141 | 1.5-2.5 (16-14) | 10A | 0.5×4.8 | 0.4 | 6.9 | 7 | 16.6 | – | 4.6 | 1.7 | Red | |
| SCTFLDNY1.25-187(8)-PS141 | 0.8×4.8 | 0.4 | 6.9 | 7 | 16.6 | – | 4.6 | 1.7 | ||||
| SCTFLDNY1.25-250-PS141 | 0.8×6.35 | 0.4 | 8.5 | 8 | 16.6 | – | 4.6 | 1.7 | ||||
| SCTFLDNY2-187(5)-PS141 | 1.5-2.5 (16-14) | 15A | 0.5×4.8 | 0.4 | 6.9 | 7 | 16.6 | – | 5.3 | 2.3 | Blue | |
| SCTFLDNY2-187(8)-PS141 | 0.8×4.8 | 0.4 | 6.9 | 7 | 16.6 | – | 5.3 | 2.3 | ||||
| SCTFLDNY2-250-PS141 | 0.8×4.8 | 0.4 | 8.5 | 8 | 16.6 | – | 5.3 | 2.3 | ||||
