| Part Number | Wire Range (AWG#) |
Max Current | Connecting spec | Tab Thickness (mm) |
Dimension (mm) | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCONDAR | TE (Cross Reference) |

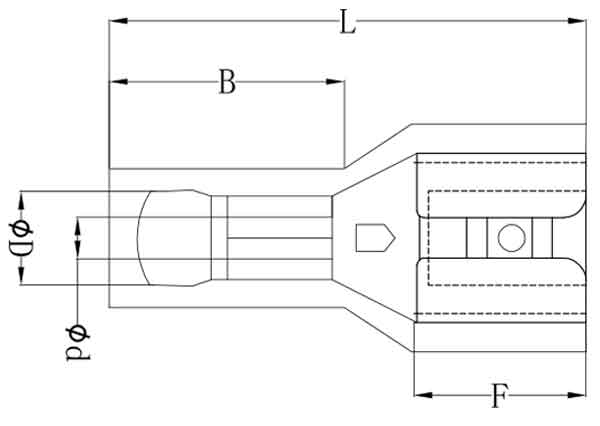

W | F | L | B | Dφ | dφ | |||||
| SCTFDFN1.25-110(5)141 | 0.5-1.5 (22-16) |
10A | 05×2.8 | 0.3 | 0.3 | 3.2 | 6.4 | 20.4 | 11 | 4.4 | Red | |
| SCTFDFN1.25-110(8)141 | 08×2.8 | 0.3 | 0.3 | 3.2 | 6.4 | 20.4 | 11 | 4.4 | ||||
| SCTFDFN1.25-187(5)141 | 0.5×4.75 | 0.4 | 0.4 | 5 | 6.4 | 21.4 | 10.5 | 3.5 | ||||
| SCTFDFN1.25-187(8)141 | 0.8×4.75 | 0.4 | 0.4 | 5 | 6.4 | 21.4 | 10.5 | 3.5 | ||||
| SCTFDFN1.25-250141 | 0.8×6.35 | 0.4 | 0.4 | 6.6 | 7.3 | 22 | 11 | 4.5 | ||||
| SCTFDFN2-110(5)141 | 1.5-2.5 (16-14) |
15A | 05×2.8 | 0.3 | 0.3 | 3.2 | 6.4 | 20.4 | 11 | 4.5 | Blue | |
| SCTFDFN2-110(8)141 | 08×2.8 | 0.3 | 0.3 | 3.2 | 6.4 | 20.4 | 11 | 4.5 | ||||
| SCTFDFN2-187 (5)141 | 0.5×4.75 | 0.4 | 0.4 | 5 | 6.4 | 20.4 | 11.5 | 4.2 | ||||
| SCTFDFN2-187(8)141 | 0.8×4.75 | 0.4 | 0.4 | 5 | 6.4 | 21.4 | 10.5 | 4.2 | ||||
| SCTFDFN2-250141 | 0.8×6.35 | 0.4 | 0.4 | 6.6 | 7.3 | 22.4 | 11.5 | 4.8 | ||||
| SCTFDFN 5.5-250141 | 4-6 (12-10) |
24A | 0 8×6.35 | 0.4 | 0.4 | 6.6 | 7.6 | 24.2 | 13 | 6.6 | Yellow | |
