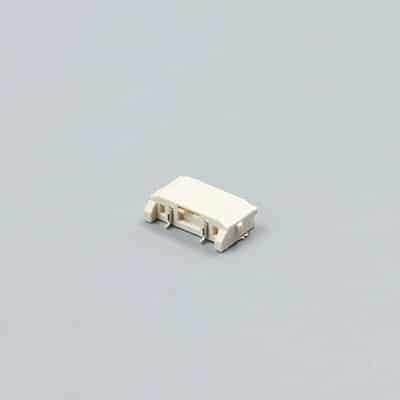

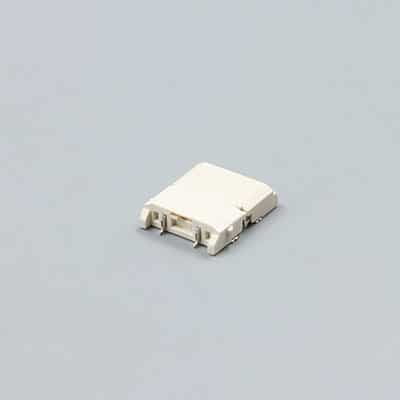

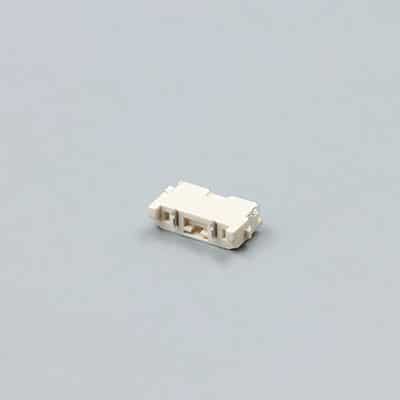

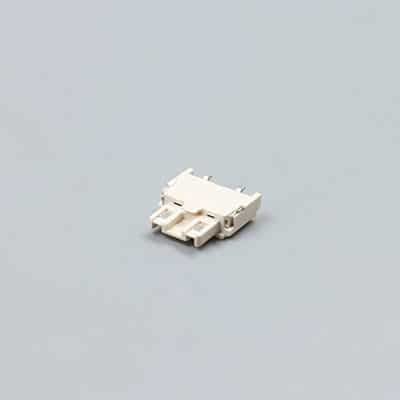

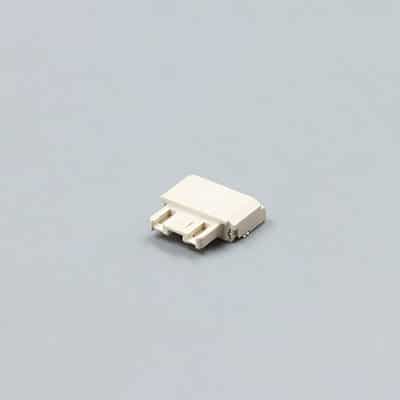

400BTB Series
Specification
| Voltage rating | Â 300V AC, DC |
| Current rating | Â 3A, AC, DC |
| Withstanding Voltage | Â 1700V AC/minute |
| Insulation resistance |  1000MΩ min |
| Temperature range |  -25°C – +85°C |
| Contact resistance |  20mΩ max |
| Material | Â LCP, UL94V-0 |
| Contact | Phosphor bronze, Tin plated |
| Q’ TY | 1, 000PCS/Reel |
