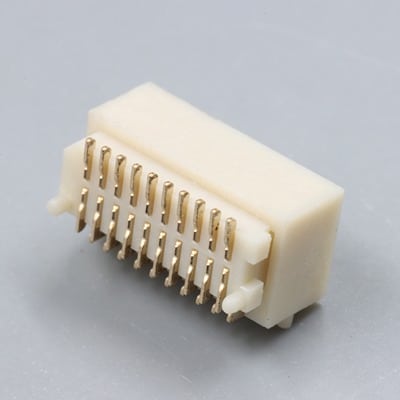

80BTBHxxx Series
0.8mm pitch board-to-board connectors are compact, high-density connectors ideal for space-constrained applications, offering reliable signal transmission and various pin counts for devices like smartphones and tablets.
Specification
| Series | 80BTBHxxx Series |
|---|---|
| Contact Pitch | 0.8mm |
| No.of Contacts | 2*5 to 2*35 positions |
| Current | 0.3A |
Previous
Next
Select Components
| Current Rating: | 0.3A |
| Voltage Rating: | 30V |
| Temperature Range: | -35°C~+85°C |
| Contact Resistance: | 100m Omega Max |
| Insulation Resistance: | 50M Omega Min |
| Withstanding Voltage: | 100V AC/minute |
